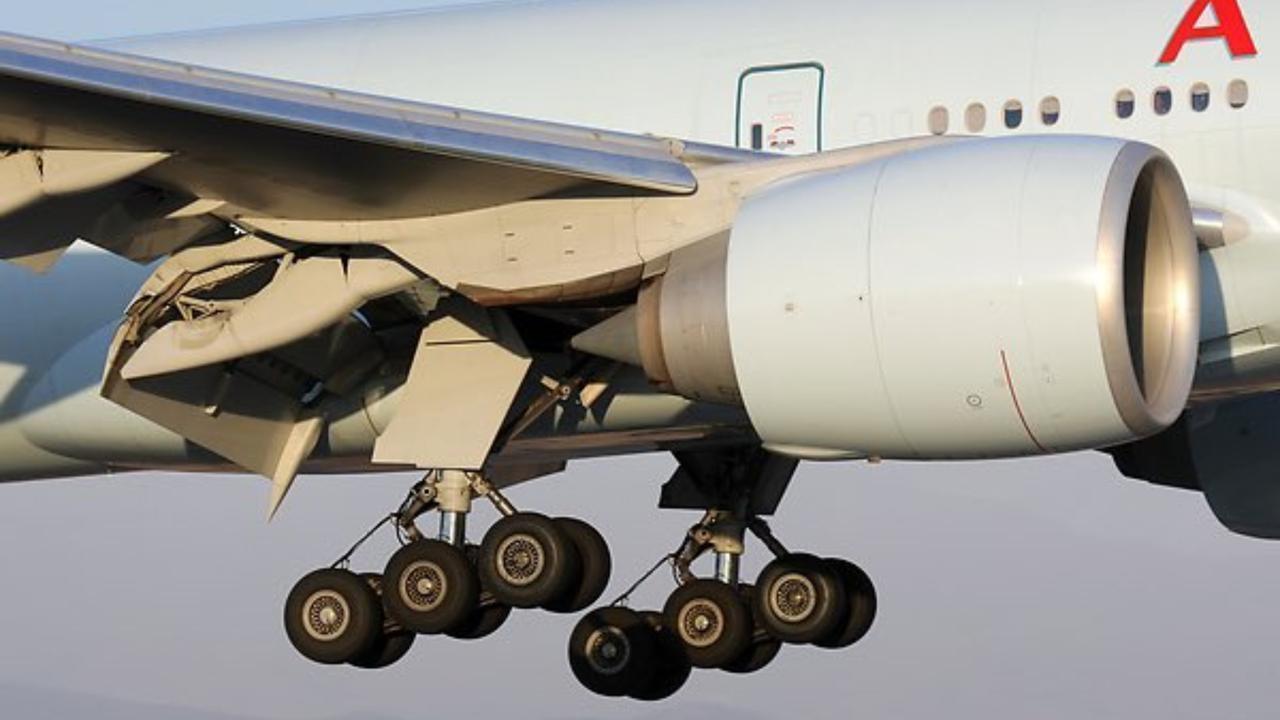

Why the Boeing 777's Main Gear Needs 12 Tires

Post by : Amit

Photo ; X / Sal Saverio

Power Beneath the Wings
The Boeing 777 is a titan of modern commercial aviation. Known for its extended range, twin-engine power, and impressive passenger capacity, it also boasts a landing gear design that sets it apart. Specifically, the aircraft’s main gear uses 12 tires—six on each side—complemented by two nose gear tires, for a total of 14. But it’s those 12 main tires that carry the brunt of the aircraft’s mass and allow for safe operations at airports across the globe.

This tire count isn’t an arbitrary decision. It reflects a careful balance of structural engineering, aerodynamics, airport compatibility, and operational efficiency. Every one of those 12 tires plays a critical role in ensuring the 777 can safely land, stop, and take off again—day in and day out.

Managing a Massive Maximum Weight
At its core, the primary reason for having 12 tires on the main gear comes down to the aircraft’s immense weight. The Boeing 777-200 has a maximum takeoff weight (MTOW) of around 545,000 pounds (247 tonnes), while the 777-300ER and freighter versions can reach up to 775,000 pounds (351 tonnes). That’s an enormous amount of force concentrated on a few contact points during takeoff and landing.

By spreading that weight over 12 tires on the main gear, the load per wheel is significantly reduced. This helps prevent tire blowouts, distributes landing forces evenly across the undercarriage, and minimizes the stress experienced by the gear structure during high-speed landings or rejected takeoffs.

Without 12 tires, each remaining tire would have to absorb far more energy and pressure, shortening its lifespan and increasing the risk of failures.

Runway Load Distribution: Protecting Pavement
Another major reason for the 777’s 12 main gear tires is runway pavement pressure. Airport runways and taxiways are rated by how much weight they can handle, quantified in terms of Pavement Classification Numbers (PCNs). To remain compatible with global airports—especially older ones or those in developing nations—Boeing had to ensure the 777 wouldn’t exert too much pressure on any single spot.

Twelve main tires spread the aircraft’s weight over a larger footprint. This lowers the per-tire contact pressure, meaning the aircraft can operate safely even on runways with more limited load capacities. It also helps meet international aviation standards for widebody aircraft pavement compatibility.

More tires don’t just mean more weight support—they also ensure more airports can handle the aircraft.

Improving Braking Capability and Redundancy
Each of the 12 main gear wheels is equipped with multi-disc carbon brakes, which are vital for decelerating the aircraft after touchdown—especially on short or wet runways. By using more wheels, Boeing increases the total braking surface available, which translates into more stopping power and better heat dissipation.

This layout also introduces redundancy. If one brake assembly fails, the remaining 11 can still provide enough stopping force in most cases. This redundancy enhances safety during high-speed landings and emergency braking scenarios where every second and every meter counts.

Additionally, the use of multiple brakes distributes thermal stress more evenly. During braking, carbon brakes can heat up to over 3,000°F (1,650°C). Spreading this heat over 12 units reduces the risk of brake fade and damage.

Enhancing Ground Stability and Handling
Twelve main tires also contribute to the ground stability of the Boeing 777. With six wheels on each side arranged in two bogies (axle sets), the aircraft maintains excellent balance during taxiing, turning, and crosswind landings.

This wide stance prevents excessive roll during tight taxiway turns or uneven surfaces. It also reduces the chance of a tail strike during takeoff and landing, by ensuring the rear fuselage doesn’t pitch too low.

When maneuvering on the ground, the six-wheel bogies also allow smoother load distribution when the aircraft transitions over uneven pavement or slopes, keeping the cabin ride more stable and reducing stress on the airframe.

Landing Gear Complexity: Designed for Strength and Reliability
The 777’s landing gear is among the largest and strongest ever designed for a commercial twinjet. Each main gear leg supports a bogie with three wheels, making up six tires per side. These bogies retract into gear bays located under the wing roots and are built with hydraulic actuators and shock absorbers that handle thousands of landings throughout the aircraft’s service life.

The complexity of this gear also provides flexibility. For instance, the multi-bogie design can handle asymmetrical loads in case of uneven tire pressure or flat tires. The gear is designed to absorb massive vertical and lateral loads during hard landings without failing structurally.

While 12 tires may sound like a maintenance burden, they actually help reduce wear on individual tires and extend the life of the braking and suspension systems.

Comparisons With Other Aircraft
The Boeing 777’s landing gear design is unique—but not excessive. In comparison, the Airbus A350, which serves a similar market segment, uses 10 wheels: four on each main gear and two on the nose. However, the A350 is slightly lighter and uses different materials in its structure.

Boeing’s own 787 Dreamliner also uses 10 wheels and serves medium- to long-haul markets. Meanwhile, larger aircraft like the Boeing 747-400 use 18 wheels—four bogies with four wheels each on the main gear and two nose wheels. The Airbus A380, the world’s largest passenger jet, uses 22 wheels to support its enormous frame.

The 777’s 14-wheel configuration—12 on the main gear—is right in the middle, optimized for heavy long-haul operations while maintaining high airport compatibility.

Maintenance Realities: Keeping 12 Tires in Check
With more wheels comes more inspection and maintenance responsibility. Technicians must routinely check tire wear, pressure, sidewall damage, and brake health. However, the benefits outweigh the effort.

Tires on the 777 are typically retreaded multiple times, making them more sustainable and cost-effective over time. Airlines can rotate or swap tires without replacing entire assemblies, and specialized lifting jacks allow technicians to service bogies quickly and safely.

Because the gear spreads out the load, individual tires actually wear slower than on smaller aircraft with fewer wheels bearing more stress. That extends tire change intervals and helps reduce operating costs in the long run.

The 777X Continuation of the Legacy
With the arrival of the next-generation Boeing 777X—including the 777-9—the 12-tire main gear continues to play a central role. Although the 777-9 is the largest twinjet ever built, Boeing has preserved the core layout of the original 777’s gear, adding only performance enhancements and better material coatings for durability.

The 777X landing gear also integrates more advanced brake-by-wire systems, improved weight sensors, and updated hydraulic controls. However, the same 12-tire configuration remains, demonstrating how foundational that design is to the aircraft’s capability and reliability.

More Tires, Smarter Design
Twelve tires on the Boeing 777’s main gear aren’t just for show—they are the result of careful engineering, safety prioritization, and global operability. They allow the aircraft to carry more passengers and cargo, land safely at more airports, stop reliably under any condition, and remain serviceable across years of demanding flight operations.

From physics and performance to certification and cost, the 12-tire setup is the perfect example of how design decisions in aviation are never random. They are always about balance—between weight and strength, between speed and safety, between global ambition and grounded reliability.
